TESTING MACHINE

RUBBER FOR TESTING

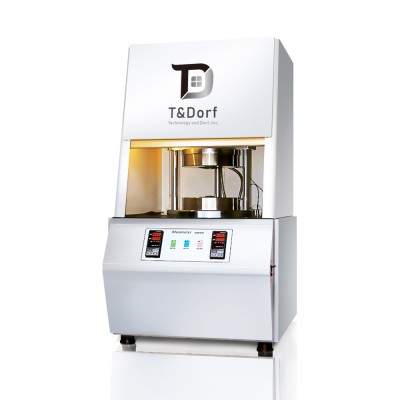

Rhemeter
Rheometers are used to measure the workability and vulcanization properties of rubber, which are actually required in the field production line, and are manufactured according to the vulcanization test method of KS M6687 rubber compounding.
  All operations and data management can be quickly and easily viewed on the PC, and the required data can be edited and managed at any time. "

Model : TD-RM01
Standard : KS M6687
List Estimate


Model TD-RM01
Frequency 100 CPM
Oscillating Amplitude 0.5°, 1°, 3°
Temperature Range 100℃ ~ 200℃ (Option 230℃)
Temperature Probe PT 100Ω
Temperature Control SS45C 열처리
Compressed Air PID, Accuracy ±0.5
Data Report 60 PSI (4.6kg/ cm2 or 0.46MPA)
Weight ML, MH,ts1, ts10, tc50, tc90, S'ML, S'MH, TanDML, TanDMH
PowerSupply AC 110/220V, 50/60Hz 1.4KW
Dimensions 540W × 550D × 1,100H (mm)
Accessories Included Torque calibrator, Air regulator, O-ring inserter, Sample remover,
Operation Manual, Cable, Program CD, Extra Fuse.
