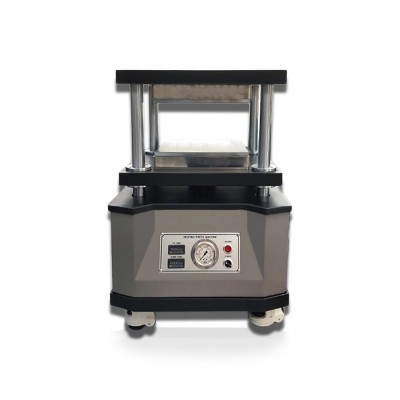

Hot Press(manual)
A compact hot press (hot press) is a type of jerky type that manually presses the jaws to pressurize. Rubber, and plastic to make molds for specimens, and it is necessary for all materials that are pressurized to a laminated or heated heated plate of various samples. "

Model: TD-HP01
Standard: According to various standards
List Estimate
Technical Specification

Model TD-HP01
Temp. Range RT~300˚C
Max Capacity 3ton, 5ton, 10ton (Option)
Plate material  SS45C 열처리
Plate Size (Heating)  100 × 100, 200 x 200, 300 x 300  (Option)
Stroke Max.150mm
Pressure System JOCKEY TYPE
Demensions 600 × 500 × 800
Net Weight 90kg
Power AC 220V / 380V(3pH) / 50.60Hz
