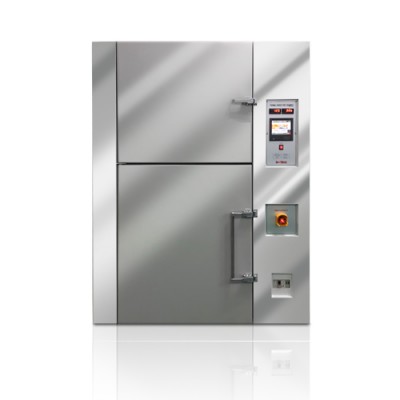

Thermal Shock Tester
The thermal shock testing machine can effectively operate the environmental test by thermal shock of the part.
  In addition to the temperature at which the temperature is basically applied, additional environmental conditions can be applied according to options such as low temperature -73 degrees, high temperature 200 degrees.
  2 Zone Elevation Type and 3 Zone Damper Type are manufactured according to the purpose of the product and high-temperature cooler is adopted to reach the rapid test temperature "

Model: TD-ST7
Standard: According to various standards.
List Estimate
Technical Specification

Model TD-ST7
Type 3 Zone Type 2 Zone Type
Test chamber dimensions 500 × 400 × 400 400 × 400 × 400
Test chamber
Temp.range '-40˚C ~ 150˚C
Temp.fluctuation ±1˚C
Temp.recovery time Within 5min
Hot chamber
Temp.range Room Temperature~180 ˚C
Temp.heat-up rate Room Temperature~180˚C Within 40min
Temp.constancy ±2˚C
Cool chamber
Temp.range '-65˚C ~ -20˚C '-50˚C ~ -20˚C
Temp.heat-up rate Room Temperature ~ -6 5˚C Room Temperature ~ -50
Temp.constancy ±2˚C ±2˚C
Heater STS pipe fin heater
Cooler Plate fin cooler
Refrigeration system Air cooled condenser or water cooled comdenser
Refrigerant R404A & R23
Outside dimension (WxDxH,mm) 1550 × 1850 × 2050 1250 × 2200 × 2060
Utility requirement
Air Pressure 4~7kg/cm2
Water Pressure 2kg/cm2
Cooling water 51/min(32˚C)
Safety device Leakage breaker, overheat protector, refrigerator high-low pressure switch,
refrigerator thermal, relay, motor overload relay,refrigerator relief valve,fuse
Recorder (Option) Programmable 1 pen type
Power AC 220V, 3PH / 50, 60Hz
