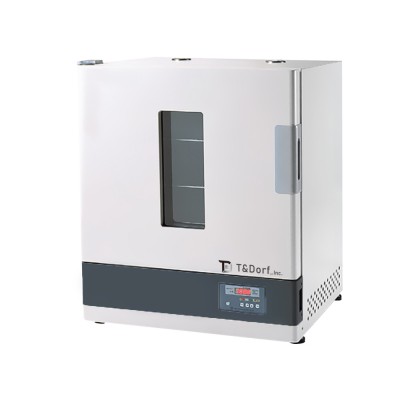

Drying Oven
The test dryer is a testing machine that simulates the environment or harsh environment that is actually used for the development of the product in the overall industrial field, and it is the test equipment that verifies the durability and reliability of the product through it. "

Model: TD-D01
Standard: According to various standards.
List Estimate
Technical Specification

Model TD-D01
Dimension (IN) 380 × 310 × 410(H) 450 × 450 × 450(H)mm 500 × 500 × 600(H)mm 600 × 500 × 1000(H)mm
Dimension (OUT) 540 × 570 × 750(H) 550 × 580 × 800(H)mm 600 × 630 × 950(H)mm 790 × 680 × 1560(H)mm
Capacity 48 Liter 91 Liter 150 Liter 300 Liter
Shelves 2 EA 2 EA 3 EA 4 EA
Temp. controller Digital P.I.D Controller
Temp. Range Ambient+5'C to 250'C
Temp. Accuracy ±1'C at 100'C
Temp. Sensor PT100Ω / 0.15Grade
Timer Digital Timer 99hr 59min. or Infinity
Circulation Fan Siroco Fan Motor
Material (IN) Stainless Steel (SUS304) Polishing Plate
Material (OUT) SCP-1 With Powder Coating
Door Silicon Packing Door With Window
Safety Device Device Hydraulic Temperature Controller
Port Exhaust Hole x 1EA
Power (AC 220V, 60HZ) 1KW 1.2KW 1.5KW 2.2KW
