Auto-Pencil Hardness Tseter

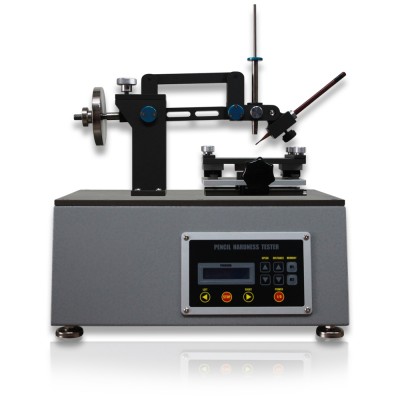

Pencil Hardness Tester

Feature
◈ This equipment is used for scratch hardness test of paints and films (various painted surfaces, fancy plywood, synthetic leather, coated surface, etc.). Plot the pencil on KS G2603 (pencil) It is a device to measure by moving while pressing the drawing with a load of about 1Kgf.
◈ Speed adjustment 10mm ~ 500mm / min
◈ Weight: 500g, 200g (2 pieces), 100g
Standard
JIS K5400, C3003, ASTM D2197


Model : TD-PH09
List Estimate
Technical Specification

ModelTD-PH09
Display 2Line LCD Digital Display
Motor Speed 10 ~ 500mm/min
Load Range 100gf~1000gf
Scratch Angle 45˚(연필경도)~90˚(스크래치-Option)
Specimen Table Size 150 × 100mm
Specimen Size 100 × 60mm
Standard Pencil 17EA (6B~9H)
Dimensions 500W × 150D × 280H (mm)
Power AC 220V / 50, 60Hz
Weight 20kg
