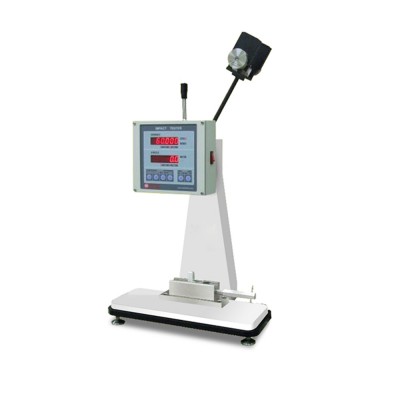

Digital IZOD Impact Tester
"The IZOD impact tester is a product that tests impact strength.
  Equipped with a high-precision encoder, it is excellent in reproducibility and reliability.
  It is controlled by LCD Indicator, and the energy value of plastic (test piece), impact value measurement is done automatically and data output is possible, so data is measured quickly."

Model : TD-IZ05
Standard : ASTM D256, JIS K7110, KS M3055, ISO 180/294
List Estimate

Model TD-IZ04 TD-IZ05
Display Anolog LCD Digital Indicator
Potential Energy 30kgf.cm (2.94J) / 60kgf.cm (5.88J) 30kgf.cm (2.94J) / 60kgf.cm (5.88J)
Hammer Weight 0.491kg
Lifting Angle 150˚
Shape of Edge R=0.8mm,75˚
Impact Speed 3.5 m/sec
Falling Distance 610mm
Span between
sample supports 		22mm
Dimension(App.) 480W × 300D × 720H(mm)
Weight(App.) 40kg
