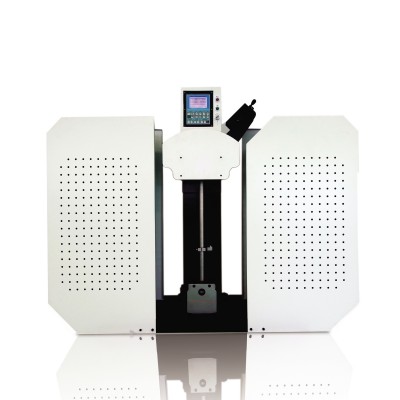

Charpy Impact Tester
The Charpy impact tester for metal can be used to detect the impact energy of the specimen fracture by applying a shock at standard angles and speed to a specimen that has been machined to the standard with a notch machine and to check the impact resistance and brittleness of the material

Model: TD-C01
Standard: KS Standard ASTM Standard
List Estimate


Model TD-C01
Type Anolog, LCD Indicator Type (Option) Anolog, LCD Indicator Type (Option)
Potential Energy 30kgf-m 50kgf-m
Hammer Weight 19.526kg 32.543kg
Hammer Lifting Angle 135deg
Hammer Radius 750mm 900mm
Shock Edge 4 set 4~12 set (Option)
Shock Edge KS, JIS, ASTM, R2 (ISO standard)
Specimen 10 * thickness of Specimen × 60mm
Lifting Hammer Electronic Bracke (Option)
Shock Speed V+5.49m/s
Lifting Hammer Manual, Auto Lifting (Option)
Hemmer Bracke Electronic Bracke (Option)
Falling Hammer Manual, Hook Type
Dimensions (Hammer Lifted) 900W × 530D × 1600H(mm) 960W × 550D × 2000H(mm)
Dimensions (Idle) 500W × 900D × 1400H(mm) 550W × 960D × 1800H(mm)
Weight 600kg 650kg
