UNIVERSAL TESTING MACHINE

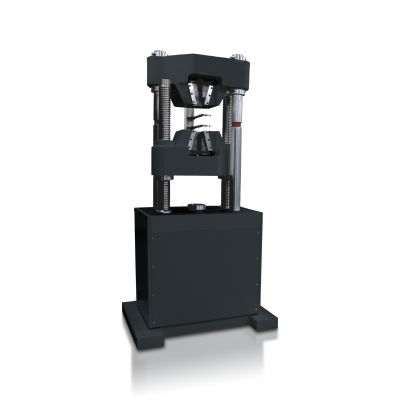

Universal Testing Machine
The tester is suitable for static tensile compressive bending and shear testing with hydraulic application frame.
The TD-U04 frame has two test spaces, allowing the user to switch between tensile and compressive tests easily and quickly without having to remove the jig.

Model: TD-U04
Standard: According to various standards
List Estimate



Model
Max Capacity 300KN (30Tonf)500KN (50Tonf)1000KN (100Tonf)2000KN (200Tonf)
Load Range
1~4 step1~4 step1~4 step1~4 step




Tensile Test

Hydraulic Grip

Max Tensile Distance (mm)500500500600
Round Type Grip size Ø8 ~ Ø22Ø8 ~ Ø22Ø10 ~ Ø30Ø10 ~ Ø40
Ø18 ~ Ø30Ø18 ~ Ø40Ø40 ~ Ø60Ø40 ~ Ø70
Plate Type   Grip size 0~150~150~450~50
15~3015~4045~6550~70
Wide : 60Wide : 60Wide : 70Wide : 90
CompressionTest Stroke (mm)0~6000~6000~6000~800
Dia Plate (mm)Ø120Ø160Ø160Ø200
Transverse &
Bending Test		Bending Distance (mm)450450450500
Punch Tips Radius (ґ)16252525
Punch Width(mm)150150150150
Roller DiameterØ30Ø50Ø50Ø70
Table Area (mm)800*560840*580910*6001050*750
Testing Size(mm)600650650750
Maximum Ram Stroke(mm)
250
250
250
250
Crosshead Speed (mm/min)300300300300
UP,DOWN Motor3ph / 4p / 1.5kw3ph / 4p / 2.2kw / 3.75kw
Hydraulic Valve Type
2 Touch Load Valve or Servo Valve (Option)
Hydraulic Servo Control System Load Amp, Displacement Amp, Servo Amp (Option)
Test Speed (mm/mim)0.1 ~ 1000.1 ~ 1000.1 ~ 1000.1 ~ 100
Load SensorLoad Cell
Stroke SensorPosition Mater
Hydraulic PumpGear Pump 2ccGear Pump 2.7ccGear Pump 4.4ccGear Pump 7cc
Total Weight (kg)1200200030005000
Power ConsumptionAC 220V,380V/3ph
Loading Unit (W × D × H) mm980 ×700 × 2150  1200 × 770 × 2200   1200 × 850 × 2350   1220 × 980 × 2850
Hydraulic Unit (W × D × H) mm1100 × 830 × 10501200 × 840 × 1150
Elongation_meterStrain Gague Type, Position Mater Type (Option)
SoftwareWindow전용 U.T.M
